Supergrid for Renewables

Back to overview

Go to the next slide,

to the previous slide

Click on the slide to get it in print quality within a new screen.

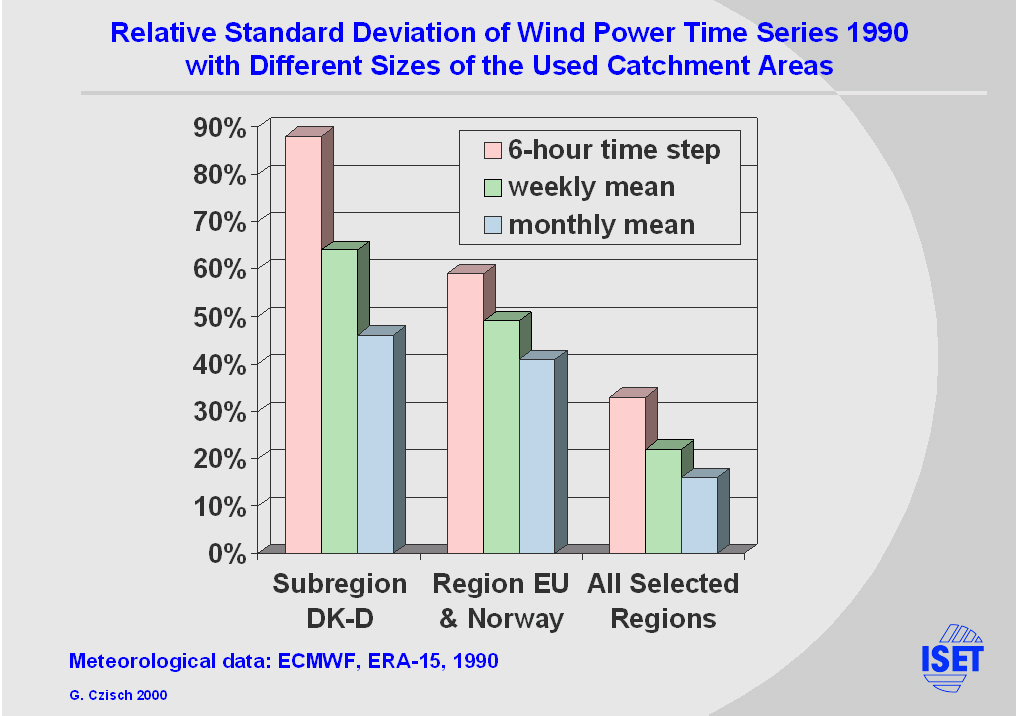

The change of the temporal behaviour of wind power production from different catchment areas can bee seen comparing its weighted standard deviations (STD/mean production). Here the results are shown for three different averaging times and three areas. The smallest only includes good wind sites in Germany and Denmark (DK-D).
In general the fluctuations rapidly decline with the size of the catchment area (see also REFERENCES [8] in the text version). For the simultaneous use of all regions mentioned the relative standard deviations are for all averaging times close to 30% of those within the area DK-D. The production is much smoother and the need of fast reactions to changes as well as of storage systems is significantly lower.
